1. Product Overview

Flat cables are key components connecting LED display modules to driver boards, responsible for signal transmission.

Damaged cables can lead to black lines, flickering, or color distortion. Timely replacement with a quality cable helps restore

normal display performance.

2. Available Cable Types & Specifications

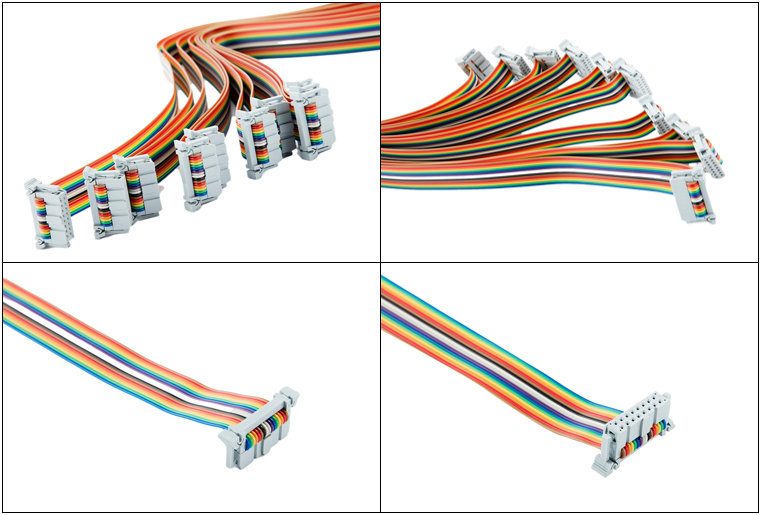

Custom cables are available, including:

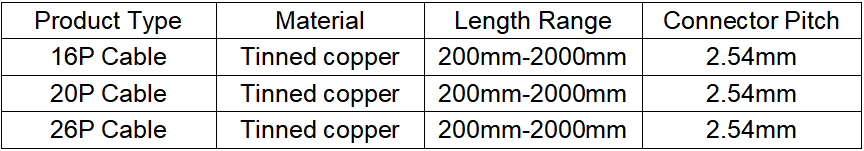

Pin counts: 8P, 10P, 16P, 20P, 26P, 30P, 36P, 40P, 50P

Length: 200mm–2000mm (custom lengths available)

Special types: 1-to-2 flat cable, color-coded flat cables, UL-certified high-end flat cables, etc

3. Ordering Instructions & Process

To order, please provide:

-Pin count (e.g., 16P)

-Cable length (e.g., 200mm)

-Connector pitch

-Module interface photo

Example: 16P cable, 200mm length, 2.54mm pitch, with interface photo – 50 pcs

MOQ: 50 pcs per model

4.Flat Cable Replacement Process

1)Diagnose the Issue

-Check for loose, bent, or oxidized cables

-Use substitution testing: swap with a known good cable to verify

2) Replacement Steps

-Power off and remove old cable; clean the connector area

-Align the new cable’s contact fingers with the socket; press gently into place

-Avoid bending the cable during installation

Notes:

-Ensure proper orientation; avoid reverse connection

5. Fixing Contact Issues with Flat Cables

Reconnect: Gently remove and reinsert the cable to reestablish contact

Replace: If contact is still unstable, replace the cable with a new one

Clean: Use alcohol or electronic cleaner to remove dust or oxidation (avoid moisture buildup)

If the issue remains unresolved, the problem may lie in the power supply or receiving card.

For inquiries or technical support, please contact: info@aoleled.com
